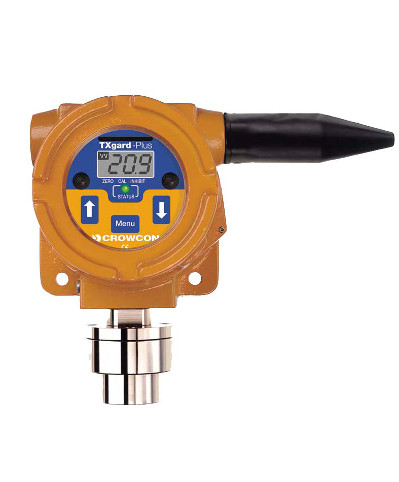

TXgard Plus is a flameproof (Ex d), ATEX and UL certified toxic or oxygen gas detector with local LCD display. A choice of sensors are available enabling use in a wide range of applications, including water treatment, oil and gas exploration, chemical plants and steel production.
Non-intrusive calibration
- Calibration can be performed locally without the need for hot work permits – minimises operational down-time
- Local display and buttons enable calibration without opening the junction box
Flexible output options
- 4-20mA current sink or source – works with a wide selection of control panels
- 3 wire format
- Optional relays for alarm and fault – can be used for switching local alarms
Rugged and reliable
- Constructed using marine-grade aluminium with a stainless steel sensor housing – proven track record for operation in the harshest environments
- Ingress protection to IP65 as standard
Low cost of ownership
- Non-intrusive one man calibration – easy to operate and maintain
- Long life sensors – keeps interuption to on-site activity to a minimum
Simple parts replacement
- Wide range of sensors
- Carbon Monoxide, Hydrogen Sulphide and Oxygen range of electrochemical sensors available.
