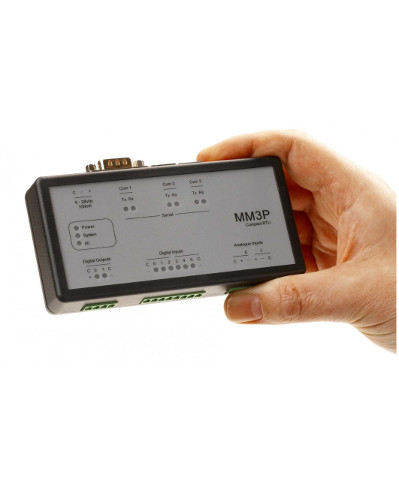

MM3P Compact

The ultimate mains powered Remote Terminal Unit compact for applications where a small footprint and full programmable functionality are required (for example a small pumping station, where I/O monitoring is required, but space is at a premium).
Its capability – including the DNP3 protocol can be easily expanded to cope with a very wide range of site applications.

Sophisticated IEC61131 programming & functionality
Expandable using multiple Compact MM3Ps or standard field bus devices
Low cost
Low risk
Fit and forget telemetry solution

Description

Features

Very low cost fit-and-forget unit housed in a compact DIN-rail mountable moulded enclosure.
Compatible with established Metasphere MC2000 Telemetry System via DNP3 Interface.
Fully IEC61131 3 programmable, supporting all standard programming languages: Function Block Diagram (FBD), Ladder Diagram (LD), Sequence Function Chart (SFC), Structured Text (ST) and Instruction List (IL).
Versatile power supply with wide input range, suitable for both 12Vdc and 24Vdc systems.
Comprehensive LED status indications for at a glance system health monitoring.
Embedded digital input, counter input, analogue input and digital output channels for flexible, low cost application.
Multiple serial interfaces with Modbus RTU master and slave protocol support enable flexible I/O expansion and system integration.
DNP3 Slave (subset level 3 with extensions)
Used in conjunction with an external modem, the Compact MM3P is compatible with a wide variety of communications media, including UHF radio, PSTN, GSM and GPRS.
